SMBT-1CS
$ 5.00
(3.5 stars) • 10 reviews

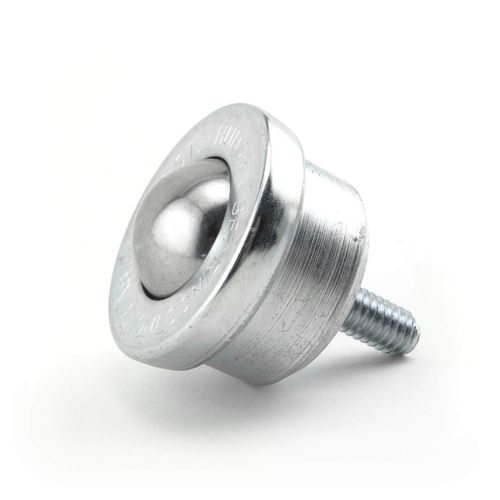

1" CARBON STEEL BALL/HOUSING 5/16-18 STUDDED MACHINED BALL TRANSFER 200 LBS CAPACITY
STUD-MOUNTED, SOLID MACHINED, ALL-STEEL
- 200 LB. Load Capacity
- Ball support cup is hardened and plated
- 1" main ball rotates on 1/8 inch support balls
- All components carbon steel
Specifications
Part Number:
SMBT-1CS
Mounting Method:
Stud Mount
Main Ball Diameter:
1"
Main Ball Material:
Carbon Steel
Support Ball Diameter:
1/8"
Support Ball Material:
Carbon Steel
Housing Material:
Carbon Steel
Load Capacity:
200 lbs.
Foam Seal Main Ball:
Yes
No
Housing Heat Treated:
Yes
No
Housing Plated:
Yes
No
Weep Holes:
Yes
No
Use Case:
Ball Table
